NRF52 Devboard Assembly

My Previous Post was about building my very own nRF52 dev board to play with! For Christmas I got an electronic hot plate, so this post is going to be documenting my foray into assembling, checking, and programming the board.

The board is up on Github here

First attempt

I found it took a few attempts to get right. I had placed a tiny dob of solder on each pad, by transferring it from a pile of solder onto the board using a leg of a sacrificial LED, but when I was attempting to get my makeshift programmer working (see programming below), it was timing out. I managed to fix this with a little bit of extra solder on the edge, but, I was worried about dry joints here.

Second attempt - bridged connections

Checking for continuity by putting my multimeter in continuinity mode and dragging up and down the lines of pines exposed without power shows that I have a number of bridged pads on the underside. I guess I needed a lot less solder here.

bridged-connections Adjacent pads are often bridged

Programming

Programming was done via a Rpi Pico I’ve got lying around using Debugprobe. This is different from JTAG and instead uses SMD for programming and debugging.

Pogo Pins used for flashing

Download the debugprobe firmware. Hold down the boot button and connect to the computer, upload to pico.
Install OpenOCD. sudo dnf install openocd

We can now test the connection to our nRF52 if the soldering went ok

[scott@sob-desktop Adafruit_Adalink]$ openocd -f interface/cmsis-dap.cfg -f target/nrf52.cfg -c "init"
Open On-Chip Debugger 0.12.0
Licensed under GNU GPL v2
For bug reports, read
	http://openocd.org/doc/doxygen/bugs.html
Info : auto-selecting first available session transport "swd". To override use 'transport select <transport>'.
Info : Using CMSIS-DAPv2 interface with VID:PID=0x2e8a:0x000c, serial=E66130100F7FA32B
Info : CMSIS-DAP: SWD supported
Info : CMSIS-DAP: Atomic commands supported
Info : CMSIS-DAP: Test domain timer supported
Info : CMSIS-DAP: FW Version = 2.0.0
Info : CMSIS-DAP: Interface Initialised (SWD)
Info : SWCLK/TCK = 0 SWDIO/TMS = 0 TDI = 0 TDO = 0 nTRST = 0 nRESET = 0
Info : CMSIS-DAP: Interface ready
Info : clock speed 1000 kHz
Info : SWD DPIDR 0x2ba01477
Info : [nrf52.cpu] Cortex-M4 r0p1 processor detected
Info : [nrf52.cpu] target has 6 breakpoints, 4 watchpoints
Info : starting gdb server for nrf52.cpu on 3333
Info : Listening on port 3333 for gdb connections
Info : Listening on port 6666 for tcl connections
Info : Listening on port 4444 for telnet connections

(seperate terminal)
(env) [scott@sob-desktop local-scott]$ telnet localhost 4444
Trying ::1...
telnet: connect to address ::1: Connection refused
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.
Open On-Chip Debugger
> nrf5 info
nRF52840-xxAA(build code: D0) 1024kB Flash, 256kB RAM

Testing with PlatformIO

Once I was reasonably happy that I didn’t have any bridged connections, I wanted to test that I didn’t have any dry joints. I did this using PlatformIO to create a small Zephyr program to turn all the IO pints HIGH. Something was up with Arduino, as I couldn’t get any IO pins on the GPIO1 register high (with pin numbers greater than 31).

Platformio.ini:

[env:nrf52840_dk_adafruit]
platform = nordicnrf52
board = nrf52840_dk
board_build.variant = Generic

framework = zephyr
upload_protocol = cmsis-dap

zephyr/prj.conf:

CONFIG_GPIO=y
CONFIG_SERIAL=n

main.c

#include <zephyr.h>
#include <device.h>
#include <devicetree.h>
#include <drivers/gpio.h>

#define SLEEP_TIME_MS 1000

void main(void)
{
  const struct device *dev;
  int ret;
  uint32_t pin;

  // Iterate through all the GPIO pins (assuming 0-31 for example)
  for (pin = 0; pin < 32; pin++)
  {
    dev = device_get_binding(DT_LABEL(DT_NODELABEL(gpio0))); // Replace gpio0 if needed for your specific board
    if (dev == NULL)
    {
      return;
    }

    // Configure each pin as an output
    ret = gpio_pin_configure(dev, pin, GPIO_OUTPUT_ACTIVE);
    if (ret < 0)
    {
      return;
    }

    // Set the pin to high (on)
    gpio_pin_set(dev, pin, 1);
  }

  // Iterate through all the GPIO pins (assuming 0-31 for example)
  for (pin = 0; pin < 16; pin++)
  {
    dev = device_get_binding(DT_LABEL(DT_NODELABEL(gpio1))); // Replace gpio0 if needed for your specific board
    if (dev == NULL)
    {
      return;
    }

    // Configure each pin as an output
    ret = gpio_pin_configure(dev, pin, GPIO_OUTPUT_ACTIVE);
    if (ret < 0)
    {
      return;
    }

    // Set the pin to high (on)
    gpio_pin_set(dev, pin, 1);
  }

  // Keep the pins on
  while (1)
  {
    k_msleep(SLEEP_TIME_MS);
  }
}

Without trying to build a custom board for the Arduino SDK, I was unable to use any of the “Port1” register Ports (should be mapped to P1.00 for pin 32, P1.01 for 33 and so on.)

Flashing the bootloader

I connected the SMD pogo pins, then followed this guide

openocd -f interface/cmsis-dap.cfg -f target/nrf52.cfg

(new window)
telnet localhost 4444
halt
nrf5 mass_erase
flash write_image pca10056_bootloader-0.2.11_s140_6.1.1.hex
flash verify_image pca10056_bootloader-0.2.11_s140_6.1.1.hex
reset run

This worked great, When I plugged in the USB port, it came up as a mass storage device!

The reset and programming button also worked well with a double tap sending it into mass storage device mode ready for new hardware.

Programming with Arduino

To program with the Arduino, I had to select the board and the bootloader:

Adafruit mRF52 -> Nordic nRF52840 DK (ours is similar to this)
Tools -> Programmer -> Bootloader DFU
Burn Bootloader

Once this was done, a sample sketch just worked! (but only with the 0.xx pins… more time needed to check there)

Testing Current Draw

One of the use-cases I had for these chips was to be a simple standby BLE wakeup device. To sit in a deep sleep, and once a command is received, be able to wake up a companion chip (like ESP32) by putting a pin HIGH.

I put a (very) simple Arduino sketch on the board to test sleeping, looping some number crunching, and doing some BLE RXing. My findings are:

Pin flip/flopping: Flip flopping or blinking an IO pin caused only about 25uA of current drawn. It wasn’t even enough to be registered by the bench power supply and I needed to put my multimeter in series with it. Turns out that after flip flopping the state, the arduino “delay” puts the chip into a sleep mode.

Number Crunching: Incrementing a counter without any delays drew roughly 6mA

BLE Wakeup: This one is interesting, and certainly requires more time to look into this at a lower level. The chip used peak of ~8mA when actively doing BLE RX/TX, but, was able to perform 2 second delays() just fine, and seemed to sleep at 200-300uA for a while, then settle on around 30uA. I’m sure there are more peaks that I don’t have a device to measure, but, this would be perfect for any use-cases I can think of, with battery life being measured in months.

Current Draw Multimeter shows BLE sketch using ~30uA typically

ChatGPT Designed Test Sketch:

#include <Arduino.h>
#include <Adafruit_TinyUSB.h> // for Serial
#include <bluefruit.h>

#define LED_PIN 4
#define BATTERY_PIN 31

BLEUart bleUart;

void setup() {
  pinMode(LED_PIN, OUTPUT);
  Serial.begin(115200);

  pinMode(BATTERY_PIN, INPUT);
  analogReadResolution(12);

  // Initialize BLE
  Bluefruit.begin();
  Bluefruit.setName("nRF52840 Light Sleep Demo");

  bleUart.begin();
  startAdv();
}

void loop() {
  if (bleUart.available()) {
    String cmd = bleUart.readStringUntil('\n');
    cmd.trim();

    if (cmd.equalsIgnoreCase("ON")) {
      digitalWrite(LED_PIN, HIGH);
      bleUart.println("LED ON");
    }
    else if (cmd.equalsIgnoreCase("OFF")) {
      digitalWrite(LED_PIN, LOW);
      bleUart.println("LED OFF");
    }
  } else {
    char buf[10];
    auto val = analogRead(BATTERY_PIN);
    sprintf(buf, "%d", val);
    Serial.println(val);
    bleUart.print(buf);

    delay(2000);  // If no BLE connection, enter deep sleep
  }
}

// Function to start BLE advertising (low power settings)
void startAdv() {
  Bluefruit.Advertising.addFlags(BLE_GAP_ADV_FLAGS_LE_ONLY_GENERAL_DISC_MODE);
  Bluefruit.Advertising.addService(bleUart);
  Bluefruit.Advertising.restartOnDisconnect(true);
  Bluefruit.Advertising.setInterval(160, 3200); // Longer intervals = lower power
  Bluefruit.Advertising.start(0); // Start advertising indefinitely
}

As a bonus, we can also see the voltage divider working to send values (close to 3.3V max) for the battery voltage.

Lessons learned

All batteries are not standard for polarity. I needed to put my connector on back the front to re-purpose some of the “Leaf” batteries for testing
The magic of flux! This worked so much better for the underside pins on the 4th or so soldering attempt!
Pretty sure on my first dev-board, I have soldered the wrong resistors into the charge controller. Want to double check that! I’m seeing a flashing status light, indicating my safety timers are wrong.

Gallery of the Project

Testing out my SMD soldering skills using a sacrificial test-board I had lying around

Next to Uno My nRF52-Mega next to various Arduino’s

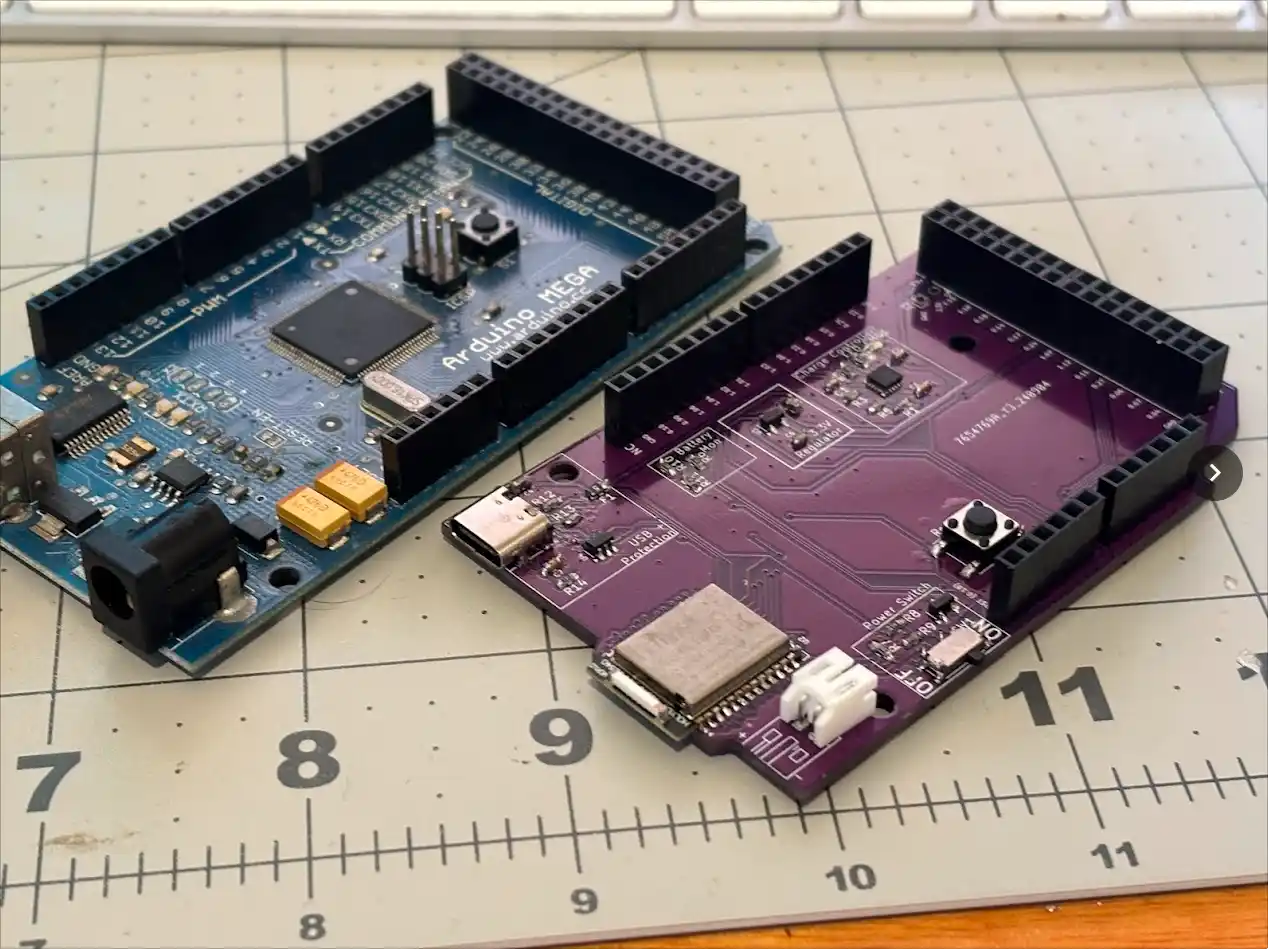

Next to Mega My nRF52-Mega next to an Arduino Mega I have around

Soldering nRF52840 Soldering the Holyiot nRF52 module using liquid solder

Shows the size of the components on the board

First time working with small SMD components. Change controller shown here
